GWR & BR Sprung 5’6″ Plate Freight Bogies
Updated, fully detailed plate freight bogie kits featuring a sprung etched bolster along with 3D printed cosmetic sideframes. There are six versions, two BR types and four GWR.
The previous versions with etched cosmetic sideframes and cast details have now been withdrawn.

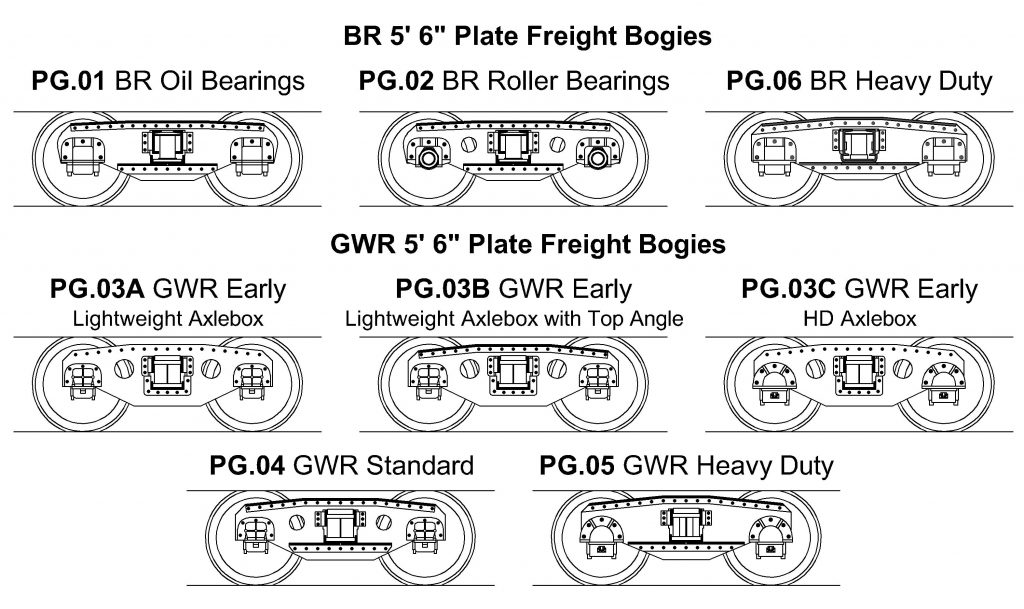

The following types are currently available:
The price is per pair. 3D prints, spring wire and brass pins included. Wheels, top hat bearings, M2 bolts and nuts, 2.5mm x 2mm brass tube pivot point bearing sleeve are required to complete.
- PG.01 BR Freight Bogies – Oil Journals – £14
- PG.02 BR Freight Bogies – Roller Bearings – £14
- PG.03A GWR Early Lightweight Freight Bogies – No External Top Angle – £14
- PG.03B GWR Early Lightweight Freight Bogies – External Top Angle – £14
- PG.04 GWR Standard Freight Bogies – £14
- PG.05 GWR Heavy Duty Freight Bogies – £14
- PG.06 BR Heavy Duty Freight Bogies – £14

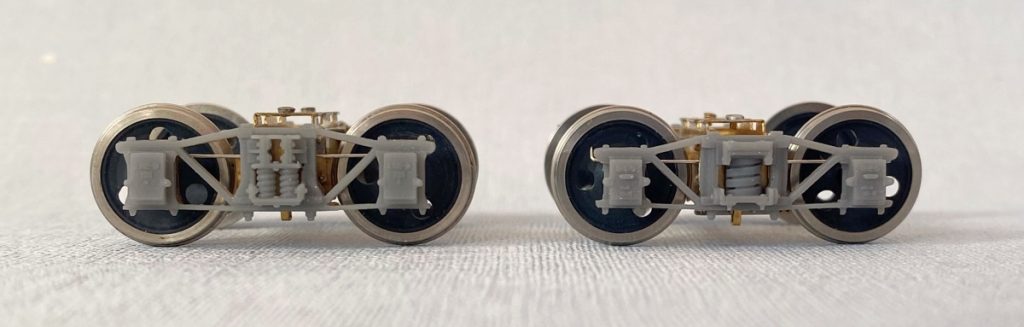

LNER 5’6″ Diamond Freight Bogies
Specification is exactly the same as the plate bogies with 3D printed cosmetic sideframes over a sprung brass frame.
The 50T bogies are suitable for the LNER Brick and Sulphate wagons.
The 42T bogies are suitable for LNER Quint Ds/Bogie Bolster Ds and Boplates. There is a choice of LNER cast axleboxes (PG.12A) or BR welded axleboxes (PG.12B). The BR axleboxes could be found on the BR Bolster Ds built to diagram 1/472.
- PG.11 LNER 50T Diamond Freight Bogies – £14
- PG.12A LNER 42T Diamond Freight Bogie (LNER Cast Axleboxes) – £14
- PG.12B LNER 42T Diamond Freight Bogie (BR Welded Axleboxes) – £14
